Harvia PRO 20 Deluxe Wood Burning Stove Kit SS
Description
Description

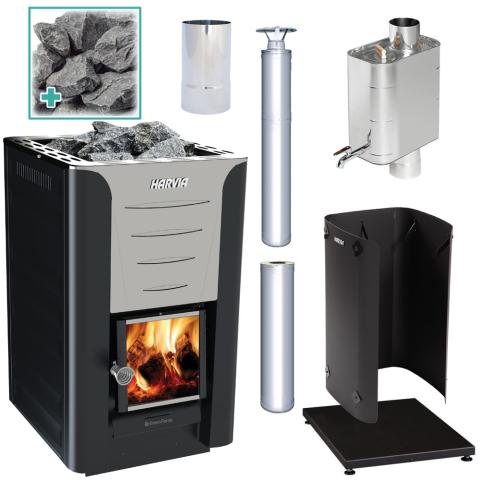

The Harvia PRO 20 Package combines everything you need, in one place. This all-inclusive package includes: Harvia PRO 20 Stove, Protective bedding, Protective sheath, 1500MM chimney kit, 1000MM chimney extension, stainless steel water heater, and smoke pipe, and Stones. Featuring clean black finishes, this package is a one-stop shop to elegance and efficiency.
Features
Harvia PRO 20 Stove
- Sophisticated design
- Wood burning
- 24kW
- For sauna rooms from 283 to 706 cu. ft.
- Steel construction with graphite black finishes
- Floor model with adjustable feet
- Dimensions 17"W x (430mm) x 20"D (510mm) x 30"H (760mm)
- 2-year warranty (Consumer use)
Protective Bedding
- Aluminum-zinc coated steel
- Black
- Adjustable feet
- For wood-burning sauna heaters
- Helps protect floors
- Dimensions: 17.7" W (450mm), 26" D (665mm), 2.4"-3" H (60-75mm)
- Can be installed on a sloping floor
- 2-year warranty
1500MM Chimney Kit
- Stainless Steel
- CE marking
- Mineral wool insulation material
- Mounts in a vertical position
- Works with wood-heated stoves
- Works with smaller fireplaces
- Works with iron-stoves
- Able to be easily extended
- Touch protection is not needed if installed in a sauna
- Soot fire resistant
- Freeze-thaw resistant
- Made in Finland
- 2-year warranty
1000MM Chimney Extension
- Innovative design
- Stainless Steel
- Prevents movement caused by temperature changes
- Can be installed indoors and outdoors
- Designed, engineered, and made in Finland
- Dimensions: 8.6" D (220mm) x 39.3" H (1000mm)
- 2-year warranty
Protective Sheath
- 3-sided sheath
- Black color
- Reduces safety distance to combustible materials
- 2 year warranty
Water Heater
- Stainless Steel
- 22 liter capacity
- 2-Year warranty (Consumer Use)
Smoke Pipe
- Stainless Steel
- CE Certification
- compatible with all Harvia wood-heated sauna wood burning heaters (except Harvia 50) and the Harvia 10 iron wood burning heater
- Dimensions: 7.9"H x 4.5" D x 4.5" W
Stones
- Olivine diabase sauna stones
- Split-Face
- Durable with high-heat capacity
- Stones range from 4" to 6" (10-15 cm)
Includes
Harvia 20 Pro Stove
- Sauna Stove
- Adjustable legs
- Stove door
- Ash box
- Installation and operation manual
- 2 year warranty (Consumer use)
Protective bedding
- Harvia Stove Protective Bedding
- Installation manual
- 2-Year warranty
1500MM Chimney Kit
- Stainless Steel
- Utility box
- Non-insulated smoke pipe
- Rain cap
- Rubber rain flange
- Installation set for rain flange
- Stainless steel lead-through flange for ceiling
- Lead-through insulation and protector
- Installation manual
- 2-Year warranty
1000MM Chimney Extension
- 1000mm Stainless steel chimney extension
- 2-Year warranty
Protective Sheath
- 3 sided sheath
- Installation Manual
- 2-Year warranty
Water Heater
- WP220-ST Water Pipe
- 2-Year Warranty (Consumer Use)
Smoke Pipe
- Smoke Pipe
Stones
- 88 lbs of 4" to 6" (10-15 cm) Olivine Split-Face stones
Specifications
Model | 20 Pro Deluxe Kit BK |
---|---|
Kilowatt Rating | 24 kW |
Primary Fuel | Wood |
Minimum Cubic Feet | 283 |
Maximum Cubic Feet | 706 |
Heater Weight | 127 lbs |
Shipping Weight with Sauna Stones | 215 lbs |
Width | 17" (430mm) |
Depth | 20" (510mm) |
Height | 30" (760mm) |
Model | WL110 |
---|---|
Material | Steel |
Weight | 26.5 lbs |
Width | 22" (560mm) |
Depth | 25" (636mm) |
Height | 2"-3" (60-75mm) |
Model | WHP1500M |
---|---|
Material | Stainless Steel |
Non-vertical installations | Not Allowed |
Product Height | 59" (1500mm) |
Product Diameter | 8-5/8" (220mm) |
Net Weight | 25 lbs |
Model | WHP1000M |
---|---|
Flexural Strength- tensile strength | 16.4 ft (5m) |
Non-vertical installations | Not Allowed |
Wind Load | 6.5 ft (2m) above last support |
Maximum spacing of lateral supports | 9.8 ft (3m) |
Weight | 14.8 lbs |
Diameter | 8.6" (220mm) |
Height | 39.3" (1000mm) |
Model | WL550 |
---|---|
Weight | 17 lbs |
Width | 19.7" |
Depth | 22.4" |
Height | 32.3" |
Model | WP220ST |
---|---|
Material | Stainless Steel |
Capacity | 2 Liters |
Width | 13.97" |
Depth | 7.48" |
Height | 16.14" |
Model | WZ11520 |
---|---|
Construction | Stainless Steel |
Width | 4.5" |
Depth | 4.5" |
Height | 7.9" |
