Saunum AIR 10 Sauna Heater Package - Stainless
Description
Description
Saunum’s patented air blending system draws heat and steam from near the ceiling, mixes it with cooler, more oxygenated air near the floor, then directs more comfortable, breathable steam throughout the room. This equalizes room temperature by more than 60% for a significantly better sauna experience. You’ll enjoy longer, more satisfying sauna sessions with more intense sweating.

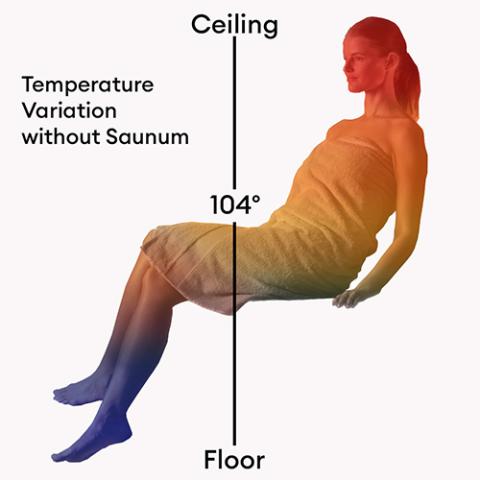

All sauna bathers have experienced the same issue – extreme variance in temperature and oxygen from the ceiling to the floor. The temperature at the ceiling can often exceed 200°F, while at the floor it will be under 100°F, causing your feet to feel uncomfortably cool and your head to be too hot. The temperature and oxygen level should be more consistent throughout.
This revolutionary sauna heater includes an ingenious climate equalizing system that more evenly balances the temperature and oxygen levels throughout your sauna for softer, more breathable air.
Saunum is all about the air!
• The AIR we heat
• The AIR we feel
• The AIR we breathe
Enrich the air with Himalayan salt ions
The ions released from the patented Himalayan salt feature are propelled into the sauna to maximize their health benefits. Salt aerosol has long been used for its benefits as a decongestant, inflammation reduction, and possesses anti-microbial properties.
Add another dimension to your sauna with aromatherapy
Breathe deep, relax, let the room fill with heat and steam, and clear away your tension with the invigorating and awakening scents of Saunum’s available aromatherapy option.
Experience 6 distinct styles of sauna bathing
Saunum lets you customize your bathing experience by adjusting airflow, temperature, and steam to suit your exact preferences.
• Russian Banya – Air blending, massive stone volume, intense heat, and steam. Heat, ventilation, and humidity merge to simulate a traditional banya.
• Finnish Sauna – Harness the power of intense, dry heat for an authentic Finnish sauna. Its huge rock mass radiates intense, consistent heat.
• Estonian Sauna – Long sweats, soothing heat and rich steam are the hallmarks of an Estonian sauna.
• Yoga Sauna – Oxygenated airflow allows for yoga sauna experience. Even at floor level, equalized Air delivers warming heat for ideal hot yoga sessions.
• Salt Sauna – A patented system propels healthful Himalayan salt ions throughout the room. Air passes across the salt chamber creating a true salt sauna.
• Aroma Sauna – Not possible in most saunas, Saunum uses high humidity and air movement to bring satisfying aroma to your experience.
Features

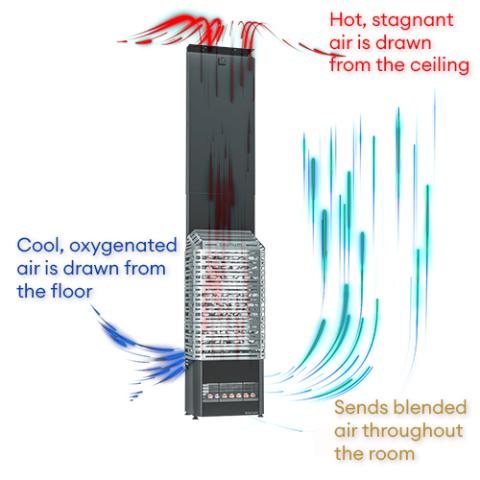

- Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen is felt head to toe.
- European Design – With elegant stainless steel finish, Saunum combines Scandinavian design and quality materials. Select the the simple elegance of the Nordic black steel body, or open stainless steel basket for a glowing organic aesthetic.
- Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 231 pound stone capacity (required 7 boxes sold separately)
- Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- Wi-Fi Control Option – The available AirIQ Wi-Fi control unit allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
- Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoyinbg the steam, the patented fan system will conveniently help dry your sauna.
- UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
- Available Aromatherapy - Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
- For sauna rooms from 282 to 424 cu. ft.
AIRIQ
Easily control the Saunum heater and climate device with just a few taps on the screen.
- For use with Saunum electric heaters up to 12 kW (Over 12 kW requires a separate contactor box.)
- Temperature selection ranges from 104 °F – 194°F (40°C - 90°C).
- Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
- Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
-
Classic Nordic Steam Sauna
- for temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
-
Humid Steam-rich Sauna
- for temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
-
Mild, Relaxing Sauna
- for temperatures from 104 °F – 131 °F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
- Notifications will be conveniently displayed directly on your control display panel
- Sauna is Ready
- Heating Status
- Door is Open
- Overheating protection applied.
- Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
- Outside Sauna room installation
- Screen lock
- Child Safety Lock
- Temperature Sensor
- Door Sensor
Stones
- High-Quality Olivine diabase raw stone
- Rounded, Pre-washed & ready to use
- Durable with high-heat capacity
- Stones range from 2" to 4" (5-10 cm)

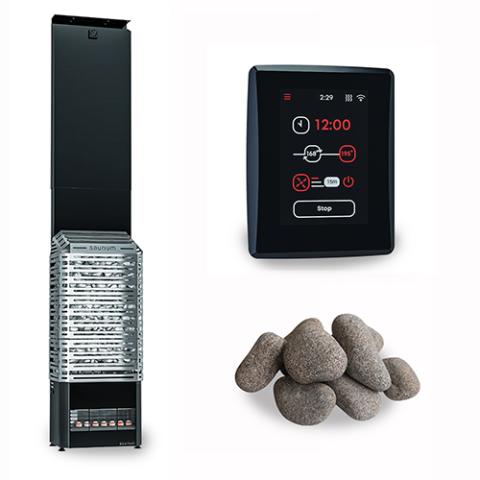

Includes
Saunum Air10
- Stainless Steel Stone Basket
- Heat Equalizing Module
- Telescopic Hot Air Intake
- Heating Element Air Tunnels (3)
- Himalayan Salt Spheres (7)
- Hot Air Intake Cap
- Stainless Steel Protective Grille
- Heating Element Electrical Cable, 5' (152.4 cm)
- Heat Equalizer Electrical Cable, 5' (152.4 cm)
- Room Temperature Sensor & Cable, 9.5' (289.56 cm)
- Door Sensor & Cable Assembly, 9.83' (299.62 cm)
- IQAir Display Panel Cable, 16' (487.68 cm)
- Quick Install Guide
- Installation & Operation Manual
- Limited Warranty
AIRIQ
- Soft-Touch Display Panel (Wi-Fi Updates, No App-Based Operation)
- Wall Mounting Plate & Fasteners
- Power Unit
- Door Sensor Magnet
- Installation & Operation Manual
- Limited Warranty
STONES
- 7 boxes 33 lb box of 2" - 4" (5-10 cm) sauna stones
Specifications
| Heat Equalizing System | |
|---|---|
| Model | Air 10 |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
| Ceiling Hot Air Intake | 17.72" x 4" ( 450.09 x 101.6 mm) |
| Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor |
| Cool Air Intake Size | 2" x 2.75" (50.8 x 69.85 mm) |
| Blended Air Output | 4.31" x 14.13" (109.47 x 358.90 mm) |
| Himalayan Salt & Aroma Tray Type | 16.5" x 4.5" (419.1 x 111.76 mm) |
| Himalayan Salt & Aroma Tray Size | 16.5" x 4.5" (419.1 x 111.76 mm) |
| Display Panel | |
|---|---|
| Model | AirIQ |
| Certification/Global Safety Rating | UL (Underwriters Laboratories) |
| Type | Digital, Soft-Touch |
| Response | Tactile with Haptic Feedback Technology |
| Language Selection | 16-Languages |
| Wi-Fi Capability | Wi-Fi Updates Only (No App-Based Operation) |
| Notifications | Sauna is Ready, Heater Status, Open Door, and Overheating Protection |
| Safety Features | Admin, Screen Lock, Door Sensor, and Overheat Protection |
| Color | Nordic Black |
| Heat Equalizing Control | 3-Speed Adjustability |
| Depth | .8" (20.32 mm) |
| Width | 3.3" (83.82 mm) |
| Height | 4.1" (104.14 mm) |
| IP Rating | IP20 |
| Minimum Temperature Setting | 104-Degrees Fahrenheit (40-Celcius) |
| Maximum Temperature Setting | 194-Degrees Fahrenheit (90-Celcius) |
| Duration Timer | 1 - 6 Hours |
| Display Panel Cable (included with heater) | 4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm) |
| Door Sensor & Cable Assembly (included with heater) | 2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm) |
| Door Sensor Probe | 1" Long and .24" Diameter (25 x 6 mm) |
| Operating Temperature Range | -4 - 145-Degrees Fahrenheit (-20 - 62 Celsius) |
| Programmability | Weekly Scheduling with Three Programmable Sessions |
| Temperature Settings | Fahrenheit or Celsius |
| Region Settings | North American and European Versions |
| Room Temperature Sensor (included with heater) | Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm) |
| Model | Sauna Stones |
|---|---|
| Stone weight per bag | 33 lbs. |
| Stone dimensions | 2" - 4" (5-10 cm) |
| Construction material | Granite |
Manual
Saunum-Air-Series-Manual-Final.pdf
