HUUM
HUUM Thru-Ceiling Chimney Kit
Description
Sauna Wood Stove Chimney Set, Thru-Ceiling

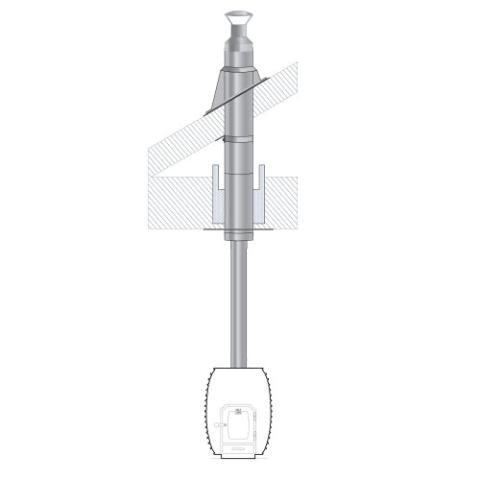

This chimney set is designed to extend straight up through the ceiling and is compatible with HUUM's wood-fired sauna stoves. The set includes a single-wall 1m pipe, a welded chimney base, a double-wall 0.5-meter chimney, a cover plate in two parts for an including ceiling, a partition ceiling insulation with cooling T600 (which is optional), a roof rafter attachment to the chimney, a double-wall straight 1-meter pipe, a roof underlay seal 160-230 (which is also optional), a ventilated roof flashing 20-35 degrees, a rain collar, and a chimney cap.
Features
- Through ceiling
- Compatible with all HUUM wood sauna stoves
- Stainless steel
- T600 cooling insulation
- Mounts in vertical position
- Works with smaller fireplaces
- Designed, engineered, and made in Estonia
- Limited 5-year warranty

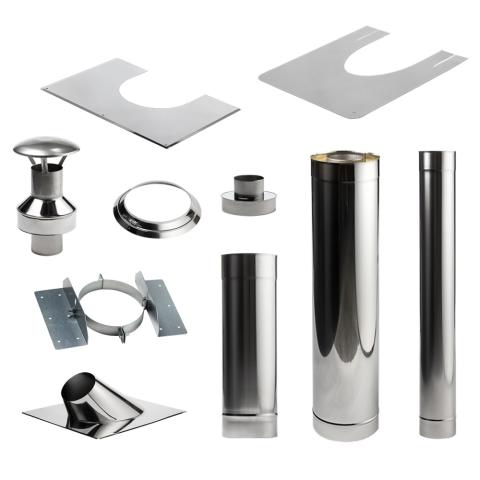

Includes
- Single-wall pipe
- Welded chimney base
- Double-wall chimney
- Inclined ceiling cover plates (2 parts)
- Partition ceiling insulation with cooling T600 (optional)
- Roof rafter attachment to the chimney
- Double-wall straight pipe
- Roof underlay seal
- Ventilated roof flashing
- Rain collar
- Chimney cap
- Installation manual
- 5 year limited warranty
Specifications
| Model | THRU-CEILING CHIMNEY KIT |
|---|---|
| Single-wall pipe length | 39.37" (1000mm) |
| Double-wall chimney length | 19.7" (500mm) |
| Roof Flashing line | 20-35 degrees |
| Material | Stainless Steel |
| Total Length | 108.3" (2750mm) |
Manual
HUUM Ceiling Chimney Kit Specs 2022.pdf
