Saunum AIR 7 Sauna Heater - Stainless
Item is in stockHurry, Only 0 Left!Item is out of stock
Item is unavailable
$2,150.00
Description
Description
Air Series, 6.4kW Sauna Heater w/Climate Equalizer, Stainless
Features

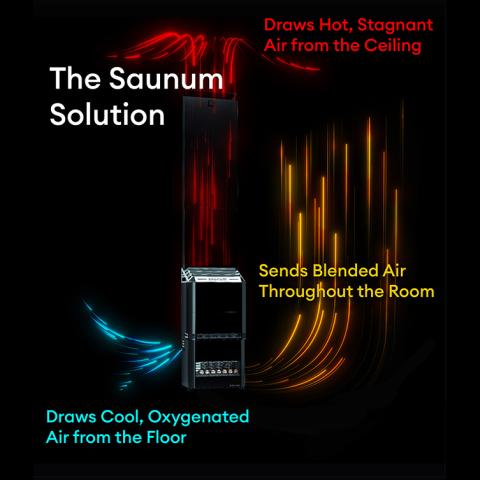

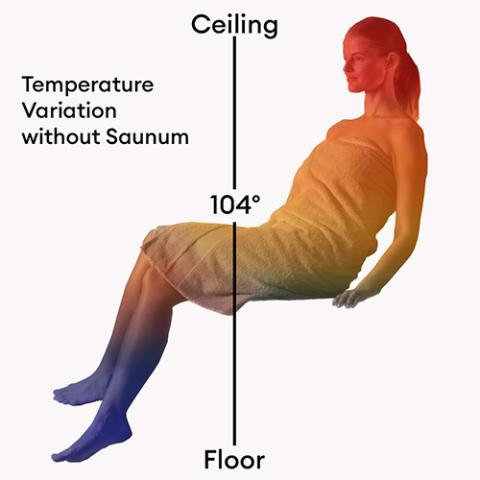

- Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen is felt head to toe.
- European Design – With elegant stainless steel finish, Saunum combines Scandinavian design and quality materials. Select the the simple elegance of the Nordic black steel body, or open stainless steel basket for a glowing organic aesthetic.
- Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 154 pound stone capacity (required 5 boxes sold separately)
- Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
- Wi-Fi Control Option – The available AirIQ Wi-Fi control unit allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
- Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoyinbg the steam, the patented fan system will conveniently help dry your sauna.
- UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
- Available Aromatherapy - Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
- For Sauna rooms from 177 to 247 cu. ft.
Includes

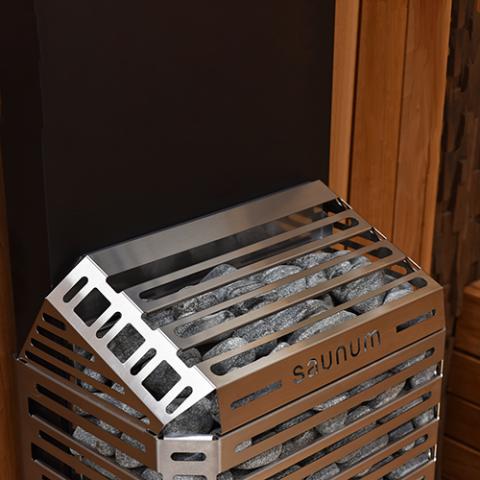

- Stainless Steel Stone Basket
- Heat Equalizing Module
- Telescopic Hot Air Intake
- Heating Element Air Tunnels (3)
- Himalayan Salt Spheres (7)
- Hot Air Intake Cap
- Stainless Steel Protective Grille
- Heating Element Electrical Cable, 5' (152.4 cm)
- Heat Equalizer Electrical Cable, 5' (152.4 cm)
- Room Temperature Sensor & Cable, 9.5' (289.56 cm)
- Door Sensor & Cable Assembly, 9.83' (299.62 cm)
- IQAir Display Panel Cable, 16' (487.68 cm)
- Quick Install Guide
- Installation & Operation Manual
- Limited Warranty
Specifications
Heat Equalizing System | |
---|---|
Model | Air 7 |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
Ceiling Hot Air Intake | 17.72" x 4" ( 450.09 x 101.6 mm) |
Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor |
Cool Air Intake Size | 2" x 2.75" (50.8 x 69.85 mm) |
Blended Air Output | 4.31" x 14.13" (109.47 x 358.90 mm) |
Himalayan Salt & Aroma Tray Type | Removable, Slotted |
Himalayan Salt & Aroma Tray Size | 16.5" x 4.5" (419.1 x 111.76 mm) |
Sauna Heater System | |
---|---|
Model | Air 7 |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Heater Body Style | Stainless Steel |
Heating Elements | Incoloy (Stainless Steel) |
Heating Element Protection (included) | Air Tunnels, Slotted Stainless Steel, Three |
Room Size | 212 - 282 (6-8 Cubic Meters) |
Wattage Rating | 6400 |
Operating Voltage | 240 VAC |
Phase | Single |
Amperage | 26.67 |
Weight | 106 lbs (48 kg) |
Shipping Weight with Stones | 300 lbs (136 kg) |
Product Depth | 12.41" (315.3 mm) |
Product Width | 18.31" (465 mm) |
Product Height (including telescopic air intake) | 71.48 - 94.49" (1815.6-2400.05 mm) |
Minimum Ceiling Height | 71.48" (1815.6 mm) |
Stone Capacity | 132 - 154 lbs (60-70 kg) |
Stone Size (sold separately) | 2" - 4" (5-10 cm) |
Circuit Breaker | 40 Amp |
Wire Size to Power Unit | (2) #8 + N + G |
Wire Size - Power Unit to Elements (Included) | 7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm) |
Wire Size - Power Unit to Heat Equalizer (Included) | 5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm) |
Room Temperature Sensor | Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm) |
